Thread M6 Terminal (Left Hand) - 3.2mm Wire (Hydraulic Swager)
Where would you normally use this stainless steel wire cable fitting ?
For hydraulically swaged cable balustrading with stainless posts.

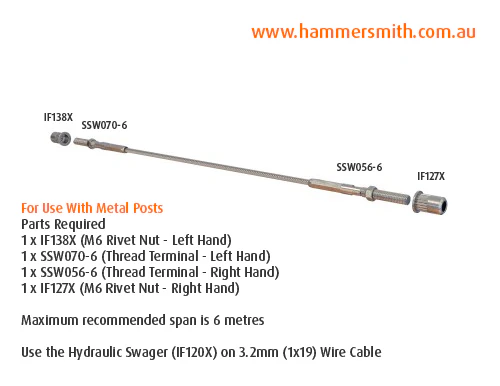

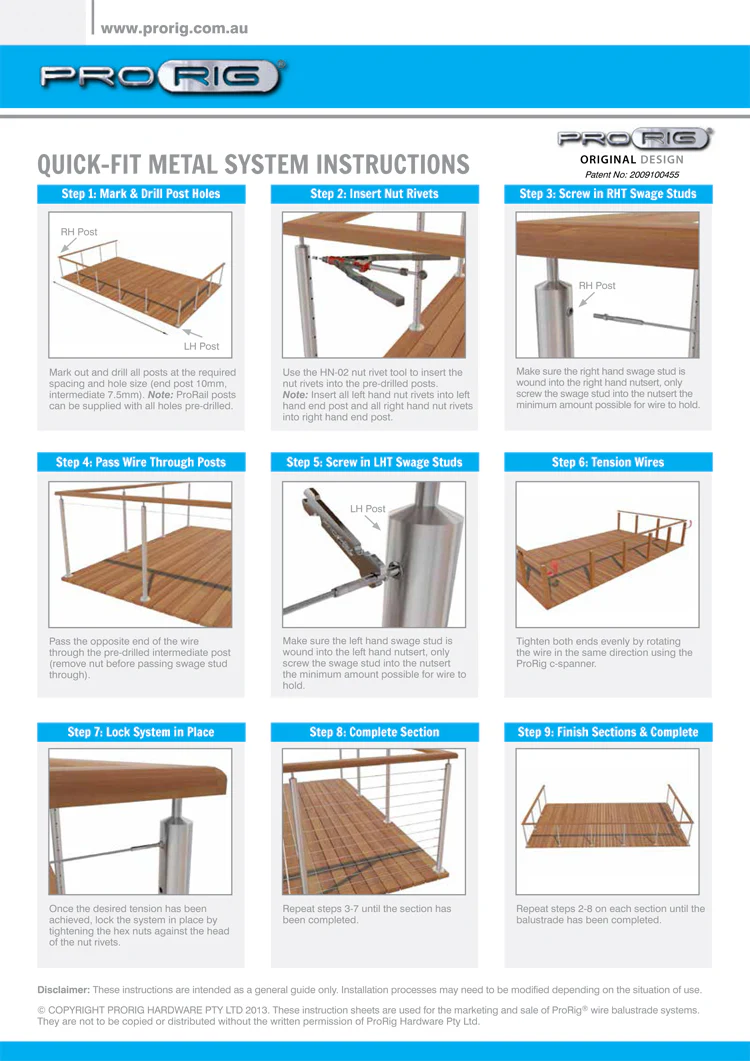

For more information, please click here to download a PDF that shows where this part would be used for wire cabling.
What is it made out of ?
316 Stainless Steel.
What are the important dimensions ?

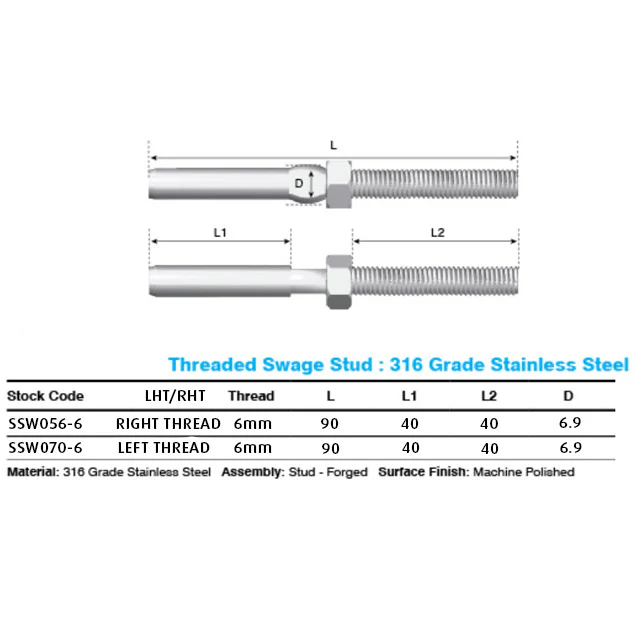

Click on the detailed CAD drawing (above) for all the important dimensions.
How do I fasten the cable to it ?
The 3.2mm wire cable goes into the open end of the fitting. Use an hydraulic swager to secure the cable. Do NOT use a hand swager or pliers, as the pressure required to press the metal flat is far greater than can be applied by hand.
Being a left hand thread, it is designed to be used inconjunction with the right hand thread version SSW056-6.
Adjust the nut to tension the cable (a special spanner can be purchased from our shop to aid the process, but is not 100% necessary).
Can it be used for exterior application ?
As it is 316 grade Stainless Steel it is more than suitable to be used inside or outside.
For hydraulically swaged cable balustrading with stainless posts.
For more information, please click here to download a PDF that shows where this part would be used for wire cabling.
What is it made out of ?
316 Stainless Steel.
What are the important dimensions ?
Click on the detailed CAD drawing (above) for all the important dimensions.
How do I fasten the cable to it ?
The 3.2mm wire cable goes into the open end of the fitting. Use an hydraulic swager to secure the cable. Do NOT use a hand swager or pliers, as the pressure required to press the metal flat is far greater than can be applied by hand.
Being a left hand thread, it is designed to be used inconjunction with the right hand thread version SSW056-6.
Adjust the nut to tension the cable (a special spanner can be purchased from our shop to aid the process, but is not 100% necessary).
Can it be used for exterior application ?
As it is 316 grade Stainless Steel it is more than suitable to be used inside or outside.
